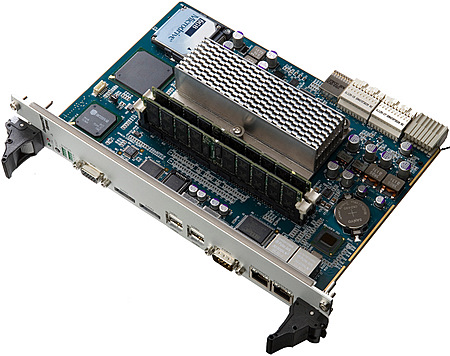

Single Board Computer A6EXP8021

A6EXP8021 is a high-performance CPU board that supports the CompactPCI Express standard. It is equipped with Intel Core Duo/Core2 Duo. Memory boasts higher reliability due to the SEC/DED/x4 SDDC features of the E7520 server chipset, and PC2-3200 DIMM can be installed using dual channel architecture. CompactPCI Express can be used for 4 x4 or 2 x8 lanes, and is compatible with various backplanes. In addition, standard interfaces such as Gigabit Ethernet, Serial ATA and USB 2.0 are installed, making it very user friendly.

Features

CPU:

Intel Core Duo processor L2400
Core2 Duo processor L7400/T7400 (optional at shipment)
L1 cache: 32KB/32KB, L2 cache 2MB/4MB
Equipped with passive heatsink, fanless

Memory:

Main memory:
2 DDR2 DIMM sockets (Dual channel)
Supports PC2-3200 Registered DIMM, max 4GB (Memory module is not included with this product)
Boot ROM:
Firmware Hub Flash memory, 1MB
Serial EEPROM:
I2C-EEPROM 2k bit

Front Panel I/O:

Graphics:
1280 x 1024 @24 bit, high density D-sub 15-pin female connector
Serial ATA:
1.0a standard, 150MB/s, 2 ports
USB:
USB 2.0 standard, USB type-A connector, 4 ports
Serial port:
D-sub 9-pin male connector, 1 port
Ethernet:
10/100/1000baseT, RJ-45 connector, 2 ports

Onboard I/O:

CompactFlash:
CF+ and CompactFlash Specification Revision 2.1 (CompactFlash is not included with this product)

CompactPCIExpress:

Bus standard:

PICMG EXP.0 R1.0 Specification
Board type:
System board (Dedicated system slot)

Power Supply:

12V±5%(supplied by rack) / 5Vaux (supplied by rack)

Board Size:

6U, 2-slot width
